Dayton 30 Whole House Fan Economy Ceiling Truss Ceiling Fans

Description

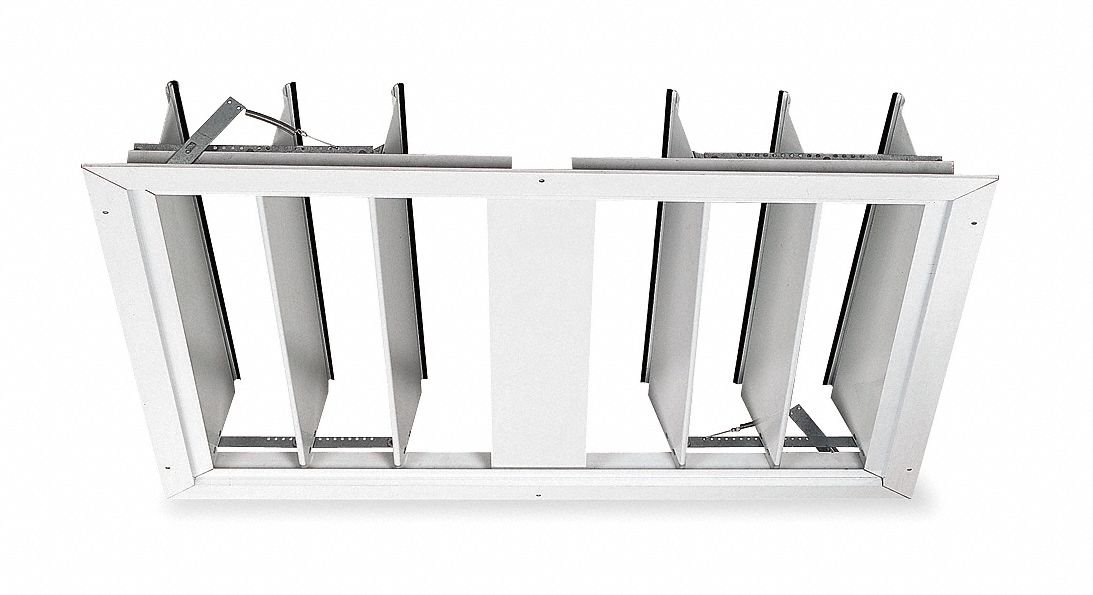

The DAYTON ceiling truss shutter is recommended for horizontalmount exhaust in residential ceilings for whole house fans. Truss shutter installs without framing or cutting the ceiling joist. Tie rods at each end side of shutter assure uniform opening when fan is operating. White extruded aluminum frame with 11/2 flange and 3/16″dia. mounting holes. White louvers with felted edges.

Item: Whole House Fan Economy Ceiling Truss Shutter / Ceiling Shutter
Fits Fan Dia.: 30″
Shutter Overall Size: 31″ L x 36″ W
Shutter Construction Material: Extruded Aluminum Frame and G90 Galvanized Tie Rods
Shutter Opening Required: 283/4″ x 337/8″
Shutter Free Area: 5.435 sq. ft.
Shutter Mounting Position: Horizontal
Shutter Mounting Location: Ceiling
Shutter Item: Whole House Fan Economy Ceiling Truss Shutter
Length: 303/4″
Width: 357/8″
Frame Depth: 13/8″
Open Depth: 5″
Flange Width: 11/2″
Mounting Hole Size: Prepunched
Max. Velocity: 1500 FPM
Blade Material: White Painted Aluminum
For Use With: 3C374 3C546 5M155
Number of Panels: 1

“
